Why Upgrading Existing AHUs With Fan Walls & DX Coils Is a Game-Changer for Commercial Buildings
As commercial buildings face increasing pressure to reduce energy consumption, improve indoor air quality, and extend the life of aging HVAC assets, the spotlight has turned to one of the most effective retrofit opportunities available today: upgrading existing Air Handling Units (AHUs) with modern fan wall systems and high-efficiency DX coils.
For retrofit contractors, these upgrades offer a powerful combination of cost-effectiveness, performance enhancement, and long-term sustainability—without the need for disruptive full AHU replacement.
1. Extending the Life of Aging AHUs—Without Full Replacement
Many commercial buildings still rely on AHUs that are 20–40 years old. While the casings are often structurally sound, internal components are inefficient and prone to failure.
Fan walls and DX coil retrofits allow contractors to modernize an existing unit’s performance while preserving the original housing, reducing:
- Structural modifications
- Roof penetrations
- Downtime
- Client operational disruption
This approach can extend usable AHU life by 10–20 years at a fraction of the cost of a replacement.
2. Major Energy Savings Through Fan Wall Technology

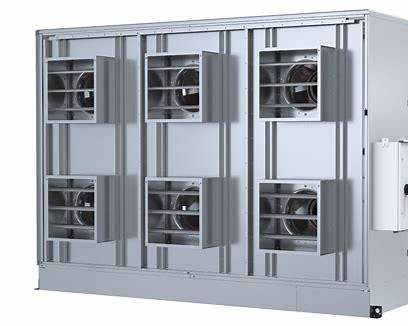

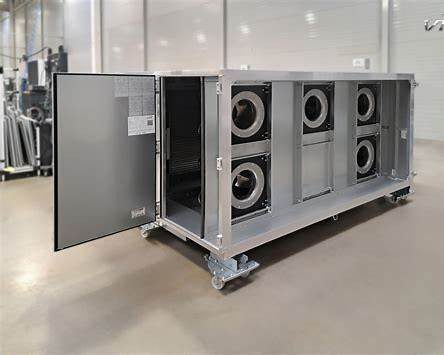

Traditional belt-driven fans are one of the largest energy consumers in an HVAC system. Fan wall systems solve this with multiple direct-drive ECM or VFD-controlled fans.
Key benefits:
- Up to 30–50% reduction in fan energy
- Higher static pressure capabilities
- Redundancy—if one fan fails, others maintain airflow
- Optimized part-load performance
- Lower sound levels
Fan walls also eliminate belts, pulleys, and complex maintenance, reducing operational costs and minimizing downtime.
3. Improved Airflow, Filtration, and IAQ
New fan wall arrays deliver more uniform airflow across the coil and filtration sections, enhancing building indoor air quality (IAQ).
Why this matters:
- More consistent filtration across the entire filter bank
- Improved heat transfer due to even coil loading
- Reduced risk of coil freeze or bypass air
- Better ability to achieve desired ventilation rates (important for ASHRAE and WELL compliance)
This creates healthier, more comfortable indoor environments—something tenants increasingly demand.

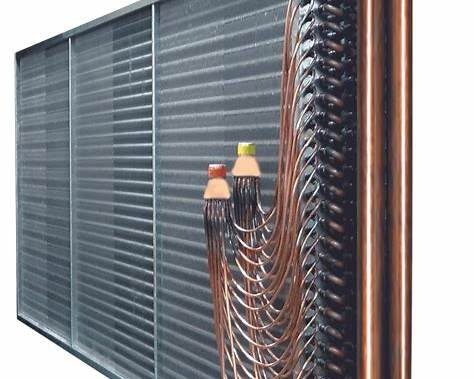

4. High-Efficiency DX Coil Retrofits Boost Cooling Performance
Retrofitting aging DX coils with modern, microchannel or enhanced-tube coil technology can drastically improve both efficiency and capacity.
Upgrading DX coils offers:
- Higher heat-transfer efficiency
- Lower refrigerant charge
- Improved latent and sensible cooling
- Better performance with modern refrigerants
- Reduced compressor runtime and energy use
This is especially valuable in buildings where cooling loads have increased due to additional equipment or occupancy changes.
5. Lower Carbon Footprint & Sustainability Advantages
Energy retrofits are now central to corporate ESG strategies and building decarbonization plans.
Fan wall and DX coil upgrades significantly reduce electrical consumption and extend equipment life, making them high-impact, low-waste solutions.
Sustainability benefits include:
- Reduced landfill waste (no full AHU demolition)
- Lower long-term energy usage
- Reduced greenhouse gas emissions
- Higher ENERGY STAR and LEED performance potential
For many building owners, these upgrades directly support ongoing sustainability commitments.
6. Incentives, Grants & Utility Rebates
Many utility providers and energy agencies offer rebates for:
- ECM/variable-speed fan systems
- High-efficiency coil upgrades
- HVAC modernization projects
These incentives often offset 20–40% of project costs, helping contractors deliver compelling retrofit ROI for building owners.
7. Minimal Downtime & Faster Project Completion
Because fan walls and coil banks can be modularized and installed through existing AHU access doors, there is no need to cut open roofs or mechanical rooms.
Clients benefit from:
- Faster installation
- Less disruption to occupants
- Lower labor costs
- Reduced risk during construction
This makes the upgrade especially attractive in hospitals, data centers, commercial offices, and facilities that cannot tolerate extended HVAC downtime.
Conclusion: A High-Impact Retrofit With Strong ROI
For commercial energy retrofit contractors, upgrading existing AHUs with modern fan wall technology and high-efficiency DX coils is one of the most value-driven services you can offer. The combination of energy savings, system reliability, sustainability gains, and long-term cost reductions makes these upgrades a smart choice for nearly any aging building.
